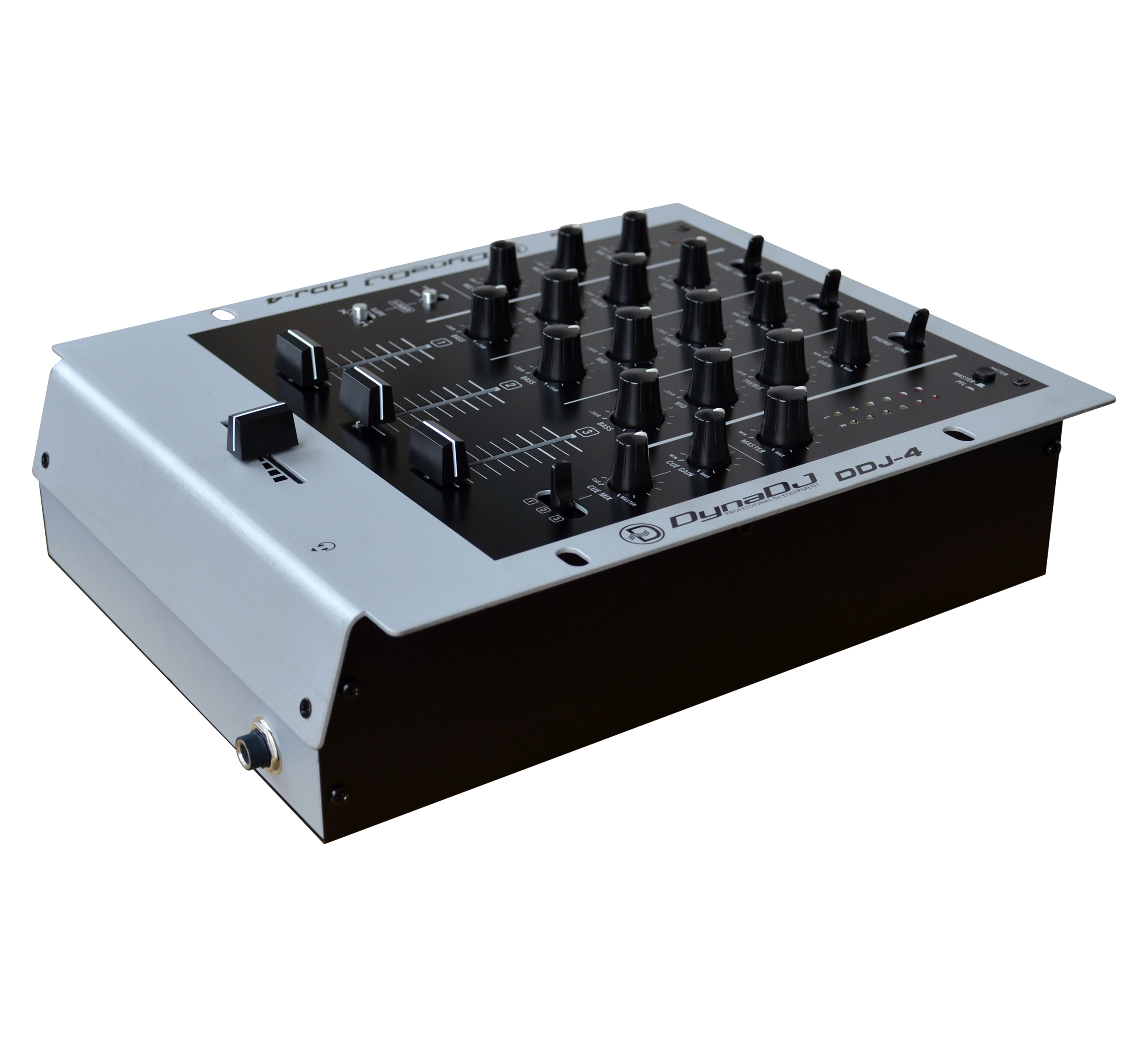

DJ Audio mixer DDJ-4


The DDJ-4 Comprise of 3-Channel Professional Audio Mixer with multiple inputs (Line/Phono/Mic). Also some of the other features are talk over switch, cue button and headphone jacks for monitoring. The DDJ-4 is a great DJ Audio mixer offered from Dynatech’s wide product range.

SPECIFICATIONS

  Modes
  DDJ-4

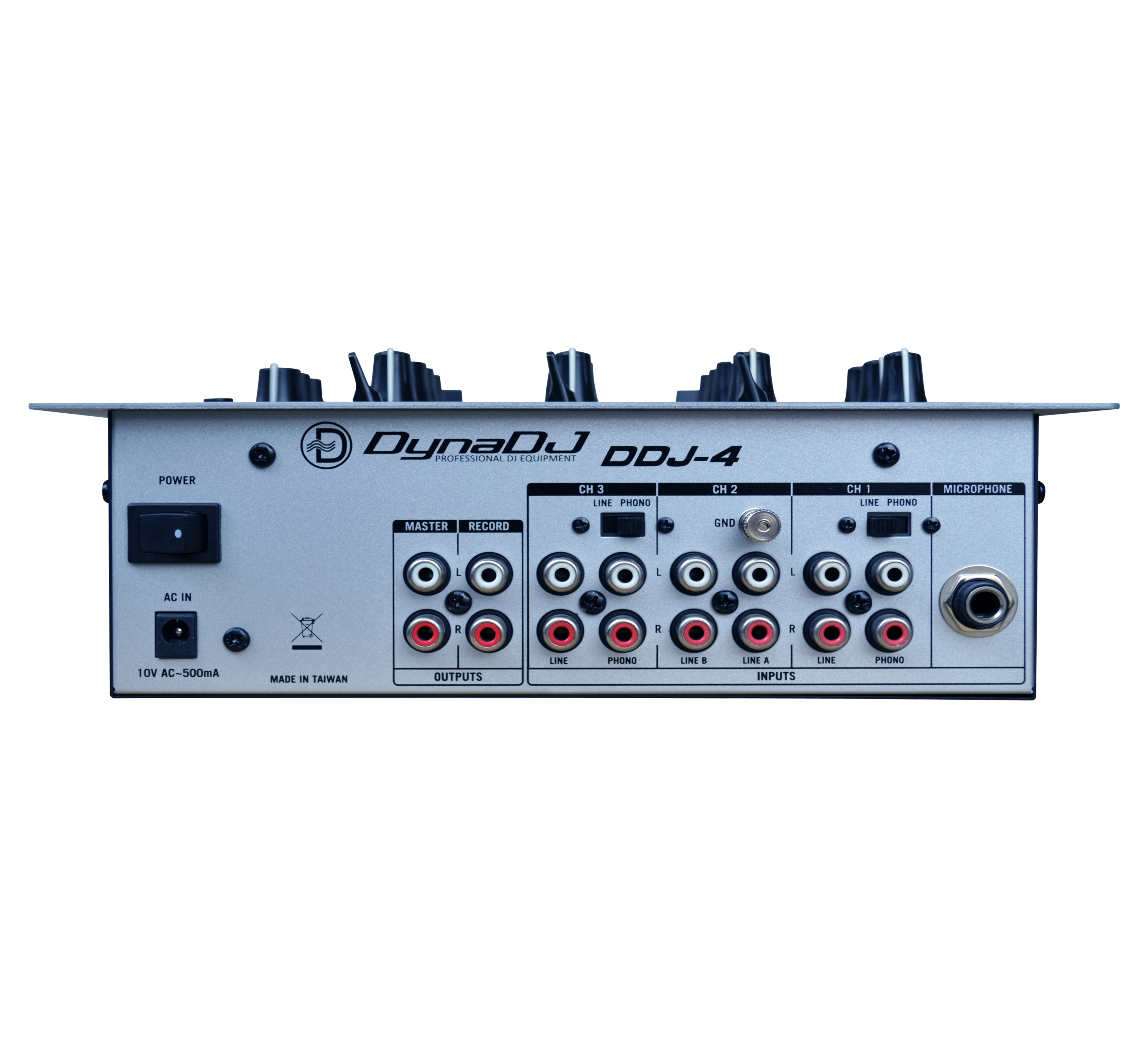

  Input
  2 Phono, 4 Line, 1 mic
  Output
  2 Master, 1 Booth via RCA
  Minimum  Input
  Voltage
  Output = 1Vrms
  Phono
  0.85mV
  Line
  50mV
  Microphone
  0.4mV
  Line
  6.8Vrms
  Headphone
  0.3W
  Frequency  Range
  +/-3dB
  Phono
  RIAA Standard +/-3dB
  Line
  20Hz-20kHz
  Microphone
  20Hz-18kHz
  Distortion
  0.01%
  S/N Ratio
  With JIS-A Weight
  Phono
  82dB
  Line
  97dB
  Microphone
  89dB
  Talkover  Attenuation   -16dB
  Headphones
  Impedance
  33 Ohm
  Tone Control   -
  Treble (dB)   +10/-30
  Middle (dB)   +10/-30
  Bass (dB)   +10/-30
  eala (3D  Surround)   -
  Bass Effect   -

DDJ-4


The DDJ-4 Comprise of 3-Channel Professional Audio Mixer with multiple inputs (Line/Phono/Mic). Also some of the other features are talk over switch, cue button and headphone jacks for monitoring. The DDJ-4 is a great DJ Audio mixer offered from Dynatech’s wide product range.
