PSC Series Electronic Crossover

PSC224


Features:
  Stereo 3-way & sub woofer crossover
  Low/mid Crossover point
     between 200 Hz to 700 Hz
  Mid/High Crossover point
     between 1.5 kHz to 8 kHz
  Sub woofer frequency range
      between 20 Hz and 200 Hz
  Individual Controls for Subwoofer,
     Low, Mid, High frequency
  Input / Output jack use XLR connector
  Frequency response from 20~20 kHz +/-1db
  AC 120V/240V switchable
  1U rack space

Applications:
Rental Companies | Install Audio | Theatre

SPECIFICATIONS

  Modes
  3-Way stereo + subwoofer crossover
  Input Connectors
  XLR
  Type
  Electronically servo-balanced, RF filtered
  Impedance
  Balanced > 50kΩ,
  Unbalanced > 25kΩ
  Max. Input level
  +22 dBu
  Common Mode Rejection Ratio
  >40 dB, typically >55 dB at 1kHz

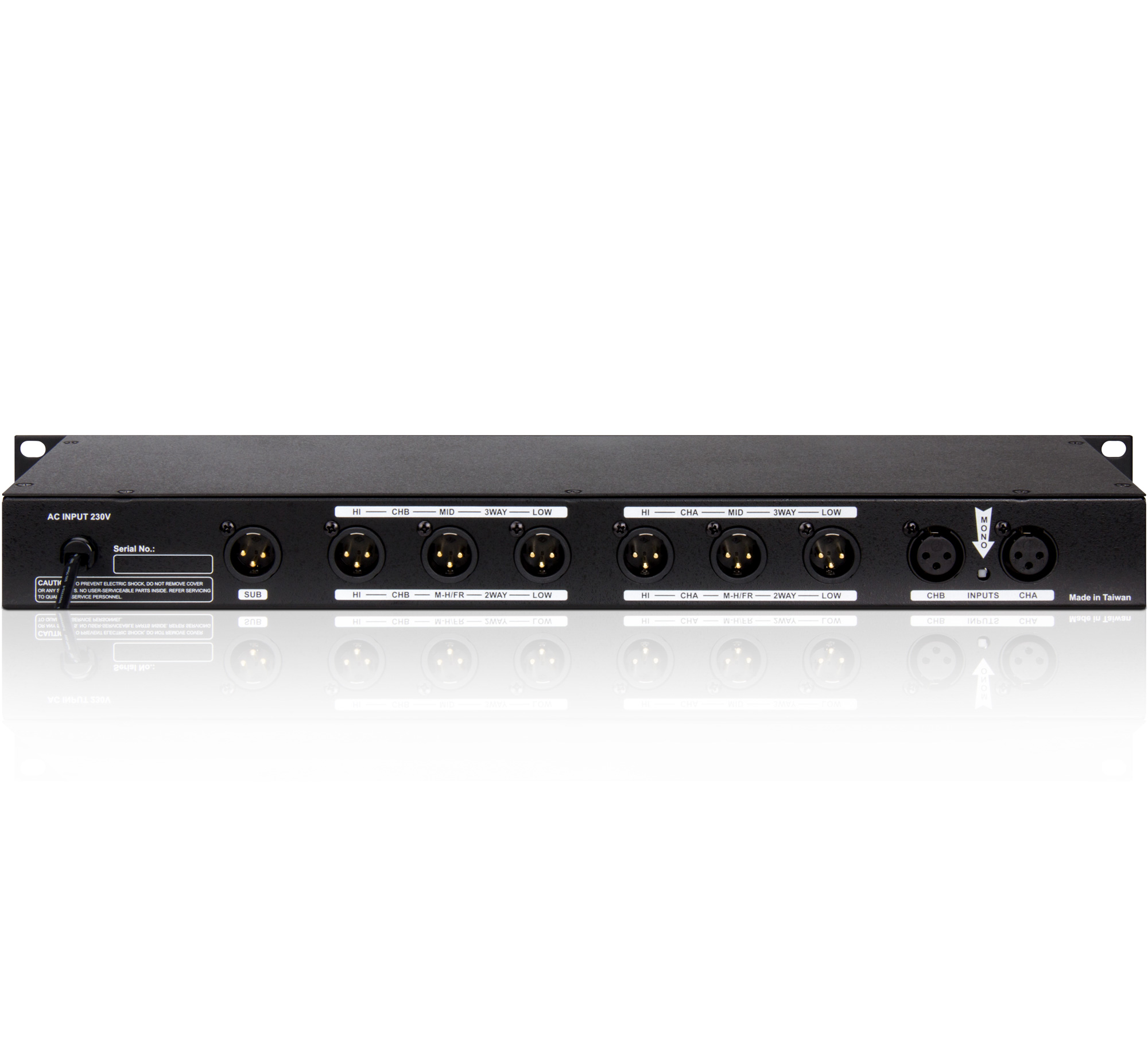

  Output Connectors
  XLR
  Type
  Electronically servo-balanced, RF filtered
  Impedance
  Balanced 60Ω,
  Unbalanced 30Ω
  Max. Output level
  +20 dBm
  Dynamic Range
  >160 dB, unweighted
  Frequency Response
  20 Hz to 20 kHz, ±1 dB
  Low/Mid Crossover
  120 Hz
  Mid/High Crossover
  2.5 kHz
  Subwoofer frequency range
  20 Hz to 200 Hz
  Dimensions L X D X H (mm)
  483 X 200 X 45
  Net Weight
  2.5 Kgs
  Gross Weight
  3 Kgs

PSC224


Features:
  Stereo 3-way & sub woofer crossover
  Low/mid Crossover point
     between 200 Hz to 700 Hz
  Mid/High Crossover point
     between 1.5 kHz to 8 kHz
  Sub woofer frequency range
      between 20 Hz and 200 Hz
  Individual Controls for Subwoofer,
     Low, Mid, High frequency
  Input / Output jack use XLR connector
  Frequency response from 20~20 kHz +/-1db
  AC 120V/240V switchable
  1U rack space

Applications:
Rental Companies | Install Audio | Theatre
