High Performance Full Range Passive Systems

DEL-115


Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DEL Series deliver extraordinary performance at unmatched value.

SPECIFICATIONS

  Rated Power   400W (RMS)
  Construction   15mm Multilayered Plywood
  LF Driver   1 X 15", 3" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 1.75" VC,
  Ferrite Magnet
  Crossover   2.4 kHz

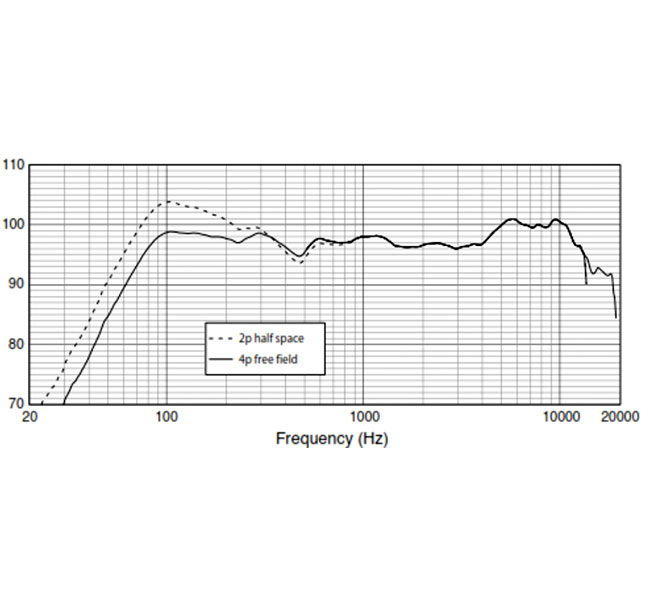

  Frequency Response (-3dB)   60Hz - 17kHz
  Maximum Peak Output   134 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   90° X 50°
  Connector   2 X NL4 Speakon

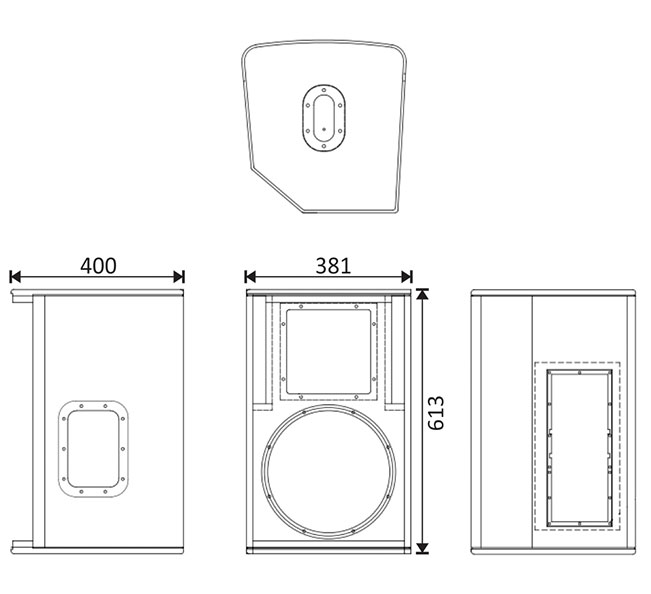

  Packaging Dimensions
  L X B X H (cms)
  50 X 46 X 78
  Net Weight   24 kgs
  Gross Weight   27 kgs

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Multi Purpose Cabinet Design
  • Use as a Main System with or without Sub Speaker

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms
