Power Amplifiers

Download Specification Sheet

CS Series

The Commercial Series (CS) Amplifiers are the most popular line of our catalog of amplification. Its success is based on an architecture class AB reliable high performance and low cost, and very easy operation mode invites casual users to become professional users: grow professionally with your own team! They are ideal for: disc jockeys (DJs) sound and light equipment fixed installations in restaurants, temples, schools.

Download Specification Sheet

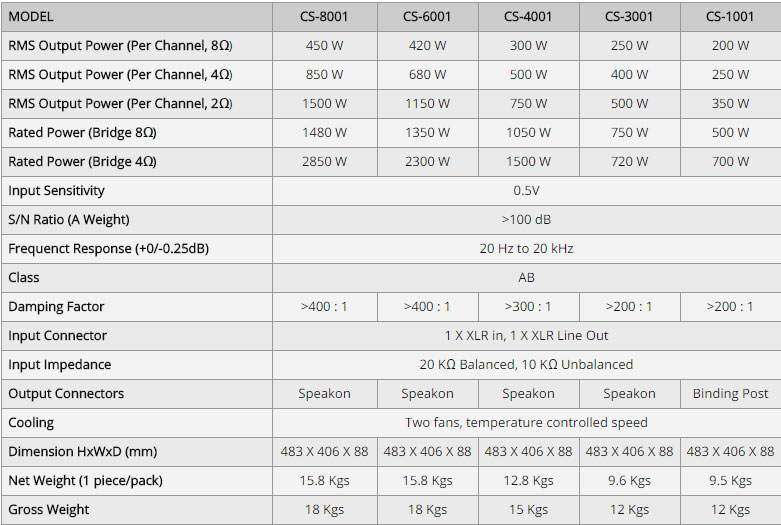

SPECIFICATIONS

  MODEL
CS-8001
CS-6001
CS-4001
CS-3001
CS-1001
  RMS Output Power (Per Channel, 8Ω)
450 W
420 W
300 W
250 W
200 W
  RMS Output Power (Per Channel, 4Ω)
850 W
680 W
500 W
400 W
250 W
  RMS Output Power (Per Channel, 2Ω)
1500 W
1150 W
750 W
500 W
350 W
  Rated Power (Bridge 8Ω)
1480 W
1350 W
1050 W
750 W
500 W
  Rated Power (Bridge 4Ω)
2850 W
2300 W
1500 W
720 W
700 W
  Input Sensitivity
0.5V
  S/N Ratio (A Weight)
>100 dB
  Frequenct Response (+0/-0.25dB)
20 Hz to 20 kHz
  Class
AB
  Damping Factor
>400 : 1
>400 : 1
>300 : 1
>200 : 1
>200 : 1
  Input Connector
1 X XLR in, 1 X XLR Line Out
  Input Impedance
20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors
Speakon
Speakon
Speakon
Speakon
Binding Post
  Cooling
Two fans, temperature controlled speed
  Dimension HxWxD (mm)
483 X 406 X 88
483 X 406 X 88
483 X 406 X 88
483 X 406 X 88
483 X 406 X 88
  Net Weight (1 piece/pack)
15.8 Kgs
15.8 Kgs
12.8 Kgs
9.6 Kgs
9.5 Kgs
  Gross Weight
18 Kgs
18 Kgs
15 Kgs
12 Kgs
12 Kgs

SPECIFICATIONS

CS Series

The Commercial Series (CS) Amplifiers are the most popular line of our catalog of amplification. Its success is based on an architecture class AB reliable high performance and low cost, and very easy operation mode invites casual users to become professional users: grow professionally with your own team! They are ideal for: disc jockeys (DJs) sound and light equipment fixed installations in restaurants, temples, schools.
