Active Speakers (HDA/DEL)

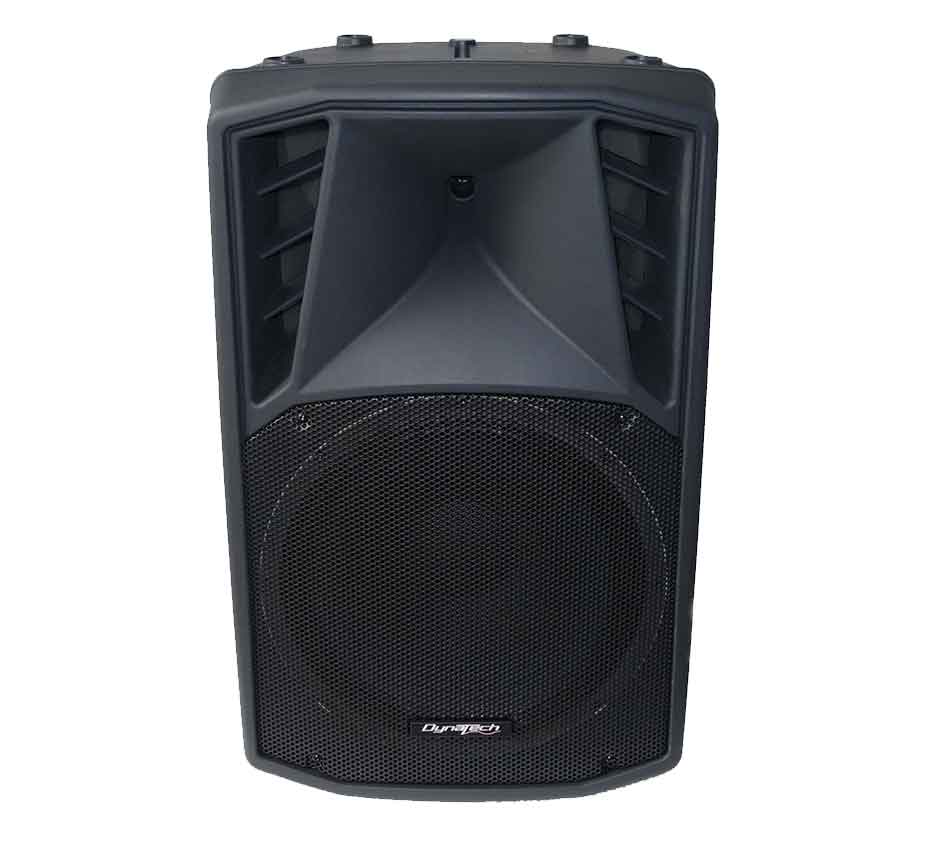

HDA-15


Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The HDA-15 delivers extraordinary performance at unmatched value.

Dynatech Systems has always been dedicated in meeting the needs of sound reinforcement professionals with some of the best products available. Dynatech’s HDA-15 is designed in the UK, and is equipped with a Celestion high-performance driver.

The HDA-15 is powered with advanced asymmetric horn design which delivers 20° horizontal dispersion at the top and 50° horizontal dispersion towards the bottom, ensuring that every listener experiences the same sound clarity and intelligibility throughout any venue. The HDA-15 also features equiplanar transducer alignment providing maximum coherence and minimum offset.

SPECIFICATIONS

  Rated Power   400W (RMS)
  Construction   Moulded Polypropylene
  Enclosure
  LF Driver   15", 3" VC,
  Ferrite Magnet
  HF Driver   1" Exit, 1.75" VC, Ferrite
  Crossover   1.7kHz
  Frequency Response (-3dB)   50Hz - 18 kHz
  Maximum Peak Output   130 dB
  Dispersion (H X V)   80° X 60°
  Connector   2 X XLR; 2 X TS mic i/p
  Packaging Dimensions
  L X B X H (cms)
  50 X 52 X 77
  Net Weight   30 kgs
  Gross Weight   33.5 kgs

FEATURES

  • High Output SPL and Sensitivity
  • High Power Transducer
  • Built-in Bi-amp Power Amplifier Module
  • XLR Input and Output Connectors
  • Cabinet Design for FOH & Monitor use

APPLICATIONS

  • Houses of Worship
  • Rehearsal Halls
  • Events
  • Clubs
  • Ballrooms

HDA-15


Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The HDA-15 Speaker delivers extraordinary performance at unmatched value.
