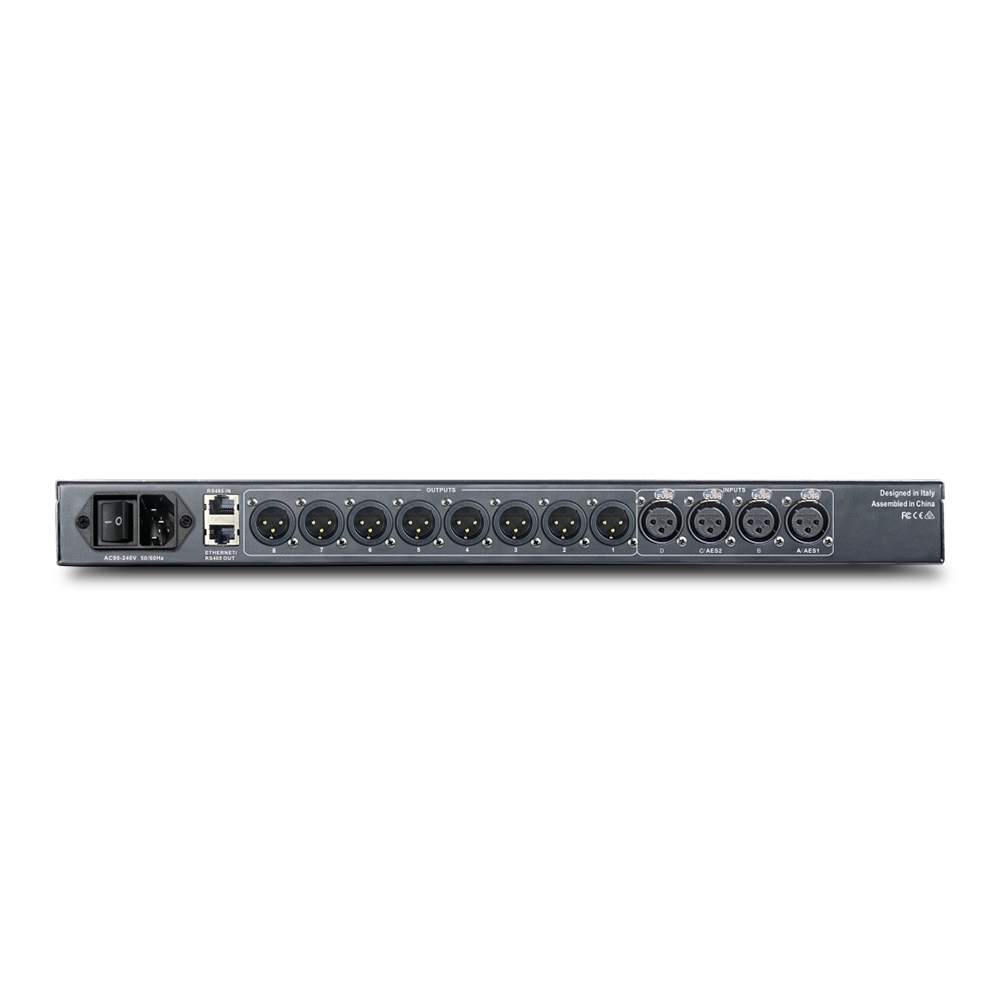

MiR480I

The MIR-F/I Series is the pinnacle of professional audio processing technology. Designed for professional Sound and System Engineers, these processors feature advanced capabilities such as Dynamic EQ (DEQ) and Auto EQ (AEQ). With up to 27 bands of parametric equalizers, the MIR-F/I Series allows extensive customization to meet the unique needs of any audio environment. The 8 channels Dynamic EQ processing module incorporates a sophisticated 5-band dynamic equalization system, featuring High/Low Shelving filters and three parametric filters. The DEQ supports four operational modes: Boost/Cut Above/Below Threshold, covering the entire audible spectrum from 20 Hz to 20 kHz. Each parametric filter offers three Q-factor modes for precise adjustments. MARANI’s Auto EQ simplifies system calibration with a proprietary algorithm that allows for one-touch measurement of impulse response. This innovative feature generates precise FIR coefficients and PEQ parameters automatically, enhancing efficiency in achieving optimal sound quality. Additionally, the inclusion of Dante protocol ensures seamless connectivity for modern audio networks. Elevate your audio performance with the MIR-F/I Series, where cutting-edge technology meets Italian engineering, transforming your listening experience with precision and unparalleled sonic intelligence.

View Product Page Download Spec Sheet

Exclusive MARANI Technology

MIR Marani Linear Phase HP/LP filters (no phase distortion)

8 Channels plug-in with 5-band dynamic equalization (DEQ) - 3 Peak filters and Low/High Shelving filters - 4 Operational modes (Boost/Cut Above/Below Threshold) - 3 Q-value modes peak filters: ConstQ, VarQLTH, VarQHTL - Full 20 Hz ~ 20 kHz frequency range coverage

Backup source input switching

Flexible Routing Matrices

Output channel summing matrices option

Up to 4096 Taps FIR filter

Dynamic Loudness Filter

RMS compressor on each input/output channel

Low distortion Peak Limiter on output channels

Simultaneous control of 128 networked units

Grouping with control of gain, mute, PEQ, and polarity

Managed through our MARANI Control software

Input impedance 20KΩ

Output impedance 150Ω

A/D dynamic range 123dB

D/A dynamic range 129dB

Maximum input level +22dBu

Maximum output level +21.5dBu

Total harmonic distortion <0.0015% (+21dBu 1KHz)

Frequency response 20Hz~45kHz

Crosstalk ≦-98dB

Signal-to-noise ratio ≧116dB +20dBu 1KHz

Noise floor ≦-96dB (A weighting)

Common Mode Rejection Ratio 65dB

Number of analog input channels 4

Number of analog output channels 8

Rs485 control port 2

Network control port 1

Input & output gain -18 dB ~ +12 dB, 0.1dB step

Noise gate Threshold range: -80dBu~-45dBu attack time: 1ms~1000ms Release time: 1ms~1000ms

Dynamic loudness filter Gain range: 0dB-10dB attack speed: fast/medium/slow

Parametric equalizer Input channels up to 27 optional types of PEQ, output channels up to 8 optional types of PEQ

Optional types include Bell, 1st order high Shelf filter, 2nd order high Shelf filter Variable Q, high Shelf filter, 1st order low Shelf filter, 2nd order low Shelf filter Variable Q low Shelf filter, 1st-order low-pass filter, 2nd-order low-pass filter Variable Q low pass filter, 1st order high pass filter, 2nd order high pass filter, Variable Q high pass filter, notch filter， 1st order all-pass filter, 2nd order all-pass filter with variable Q value

The center frequency adjustable within the frequency range of 20Hz~20kHz with a 1Hz step

Q value/bandwidth The Q value range of Bell filter is 0.4~128, the step is 0.01 The range of the Q value of the Chevron/high-pass/low-pass filter is: 0.1~5.1, and the step is 0.01 The value range of bandpass/notch filter Q is: 4~104, step is 1

Equalizer gain range -15dB～+15dB

IIR crossover filter Butterworth slope: 6/12/18/24/36/48dB per octave Bessel slope: 12/24dB per octave Linkwitz-Riley slope: 12/24/36/48dB per octave NXF slope is 40/45/50/50/55/60/65/70/75dB per octave

MIR linear phase filter Butterworth slope: 6/12/18/24/36/48dB per octave Bessel slope: 12/24dB per octave Linkwitz-Riley slope: 12/24/36/48dB per octave NXF slope is 40/45/50/50/55/60/65/70/75dB per octave

FIR crossover filter type; high pass/low pass/band pass/external import Taps range: 256 ~ 512, slope range 21 ~ 120dB per octave Time window type: Rect / Sinc / Keiser /Hanning / Hamming / Blackman /Blackman-Harris/ Blackman-Nuttal / Nuttal/Keiser -Bessel/Sine

RMS compressor Threshold range: -10dBu~ +20dBu Ratio : 2~32: 1 Soft knee: 0~100% Attack time: 0.1ms~15000ms Release time: 10ms~15000ms Make up: Maximum 12dB

Peak limiter Threshold range: -10dBu~ +20dBu attack time: 1ms~1000ms Release time: 10ms~3000ms

Hard limiter Threshold range: -10dBu~ +20dBu

Delay The adjustable delay time of each input channel + output channel is 452ms, 0.0104ms (10.4us) Step

FIR filter Each input channel and output channel can import 48kHz sampling rate 512 tap FIR filter currently, the FIR filter in the plug-in can be switched to 96kHz sampling rate, up to 4096Taps@48k/3600Taps@96k tap number to achieve full frequency linear phase.

Dimensions 482x44x253(mm) 1RU

Package size 580x340x120（mm

Weight, Net / Shipping 3.3 Kg / 5.0Kg

Preset number 50
