Wireless Systems   E-6 & E-6TH

E-6


The E-6 wireless system is based on the success of US-8001D. It provide 16 selectable channels, antenna diversity, 80 meter or more operation distance and many other features. As always JTS RF and AF performance are guaranteed . Very affordable price makes go-wireless easier.   Preset 16 selectable UHF channels.
  Single transmitter operation.
  Diversity technology prevents dropouts in the RF link.
  PLL synthesized technology.
  Noise mute and pilot tone squelch.
  Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
  Tuned antennas maximize the effective range of the wireless link.
  Compact half rack space design.

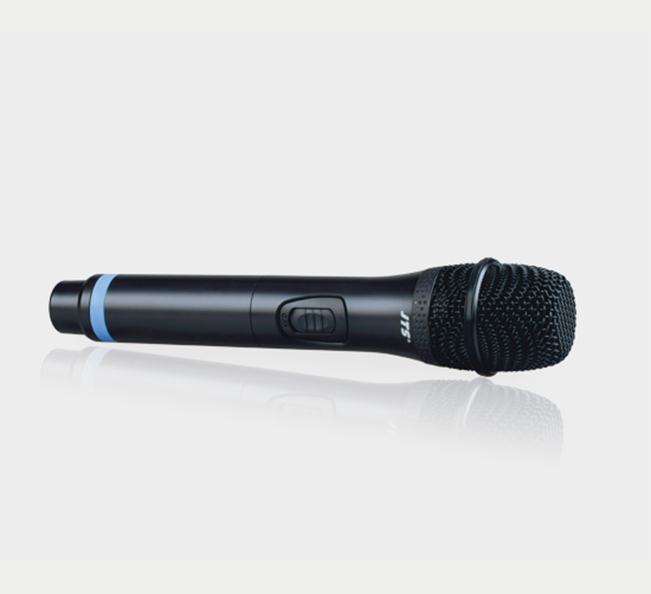

E-6TH


  16 Selectable channels.
  PLL synthesized technology.
  Advanced circuitry ensures stable signal transmission.
  Noise mute and Tone-key squelch..
  Extended dynamic range and smooth frequency response.
  Internal antenna design.

GENERAL SPECIFICATIONS

E-6

  Frequency Preparation PLL Synthesized Control
  Carrier Frequency Range 470~960 MHz
  S/N Ratio >105dB(A)
  T.H.D <0.6%@1KHz
  Display LED
  Display Contents Antenna A/B, RF/AF Status Controls : Power On/Off, Channel Selecting, Audio Level
  Controls Power On/Off, Channel Selecting, Audio Level
  Audio Output Level -12dB
  AF Output Impedance 600Ω
  Squelch Pilot Tone & Noise Mute
  Operation Voltage 12-18 VDC, 150mA
  Output Connector 1 Balanced XLR socket / 1 Unbalanced Ø6.3mm phone jack
  Dimension(m/m) 210mm (W)* 40mm (H)* 171mm (D)

E-6TH

  Frequency Preparation PLL Synthesized Control
  Carrier Frequency Range 470~960 MHz
  RF Outputs 10mW
  Frequency Deviation ±48KHz
  LED Display Low Battery, Power On / Off
  Controls Power On / Off, Channel Selecting
  Spurious Emissions <-50dBc
  Audio Frequency Response 50 ~ 16,000 Hz
  Battery UM3, AA 1.5V * 2

E-6 & E-6TH


The E-6 wireless system is based on the success of US-8001D. It provide 16 selectable channels, antenna diversity, 80 meter or more operation distance and many other features. As always JTS RF and AF performance are guaranteed . Very affordable price makes go-wireless easier.
